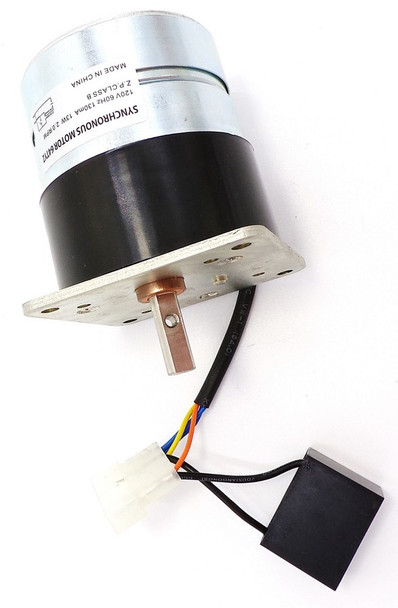

SRV7000-670 Auger Feed Motor - PelPro - Quadra-Fire - Pleasant Hearth

Our PelPro - PelPro - Quadra-Fire - Pleasant Hearth (SRV7000-670) Feed Motor (2 RPM) is a High Quality Auger Motor, constructed with durable components; to provide a slow and consistent feed of pellets.

This auger motor has a rotating shaft connected to a Cork-screw shaped shaft (Auger), which draws pellets up from the Silo to the Burn Chamber.

A Feed Motor for a Pellet stove (Motor Auger) is a key component in the automated process of heat output creation.

Replacing an Auger Motor in a pellet stove is a straightforward process.

This SRV7000-670 PelPro Feed motor is compatible with these Brands

• (SRV7000-670) Majestic
• (SRV7000-670) PelPro
• (SRV7000-670) Pleasant Hearth
• (SRV7000-670) Quadra-Fire

This SRV7000-670 PelPro auger feed motor is compatible with these Models

• PelPro - PP130-B Pellet Stove - (SRV7000-670 - Feed Motor)
• PelPro - PP150 Pellet Stove - (SRV7000-670 - Feed Motor)
• PelPro - PP60-B Pellet Stove - (SRV7000-670 - Feed Motor)
• PelPro - PP70 Pellet Stove - (SRV7000-670 - Feed Motor)
• PelPro - PPC90 Pellet Stove - (SRV7000-670 - Feed Motor)
• PelPro - TSC90 Pellet Stove - (SRV7000-670 - Feed Motor)
• Quadra-Fire - OUTFITTER-I Pellet Stove - (SRV7000-670 - Feed Motor)
• Quadra-Fire - OUTFITTER-II Pellet Stove - (SRV7000-670 - Feed Motor)
• Pleasant Hearth - PHC90 Pellet Stove - (SRV7000-670 - Auger Motor)
• Pleasant Hearth - PH35PS Series - Medium Pellet Stove with Pedestal - (SRV7000-670 - Auger Motor)
• Pleasant Hearth - PH50PS Series - Large Pellet Stove with Pedestal and Base Pan - (SRV7000-670 - Auger Motor)
• Pleasant Hearth - PH50CABPS Series - Cabinet Pellet Stove - (SRV7000-670 - Auger Motor)

Product Specifications

• HZ: 60
• AMPS: 1.3
• Volts: 120
• RPM: 2.0
• Rotation: CW/CCW
• Bearing: Ball Bearing

Included with SRV7000-670 (Pellet Stove Auger Motor)

• SRV7000-670 Pellet Feed Motor (PelPro PP60 Auger Motor)
• 1 Year Comprehensive Warranty

The function of an Auger in a pellet stove is to rotate, this spinning movement transports pellets from the Storage Compartment (Silo) to where they are Burned (Combustion Chamber). The Auger's speed can be adjusted to regulate the stove's operating temperature.
